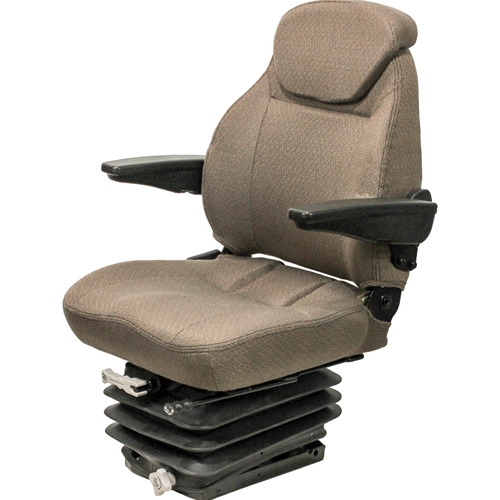

John Deere 30-55 Hydraulic KM 403 Seat & Mechanical Suspension with Sound-Gard™ Cab & Original Hydra-Cushion Suspension
$979.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
The Uni Pro™ - KM 403 Seat & Suspension is ideal in applications where high-quality comfort is needed at a great price. It is designed to replace the original seat and hydraulic suspension in the John Deere® 30-55 Hydraulic Series. Replacement includes the Uni Pro™ - KM 440 Seat Assembly and the KM Compact Mechanical Suspension.
Special Notes
Please Note: Use this kit ONLY if your John Deere® 30-55 Hydraulic Series tractor has a Sound-Gard™ cab with an original hydra-cushion suspension.
Available Options
1 Total Upsell Products
Specifications
Uni Pro™ - KM 440 Seat Assembly Features:
- Deluxe water-resistant Brown Cordura Fabric covering
- Adjustable integrated backrest folds forwards and reclines
- Backrest extension for added height adjustment
- 3-position lumbar support to help prevent lower back pain
- Fold-up armrests
- Durable document pouch stores owner's manual and other valuables
- Adjustable slide rails from 6.5" - 13" side-to-side for universal fit
- Base width of 8.85"
- Compact mechanical suspension with heavy-duty shock absorber
- Easy to operate ride control
- Height adjustment
- 3.13" suspension travel
- Weight adjustment
- 9" maximum height
- Durable suspension cover to keep components free of dirt and dust
- Uni Pro™ - KM 440 Seat Assembly
- KM Compact Mechanical Suspension
- Swivel
- Seat Adapter Plate
- Pedestal
- Install Hardware
- Installation Instructions
- Operator Presence Switch - Normally Open (PN: 8665)
- Replacement Armrest Kit (PN: 8025)
- Replacement Adjustable Slide Rails (PN: 8453)
Applications
John Deere® 30-55 Hydraulic Series with Sound-Gard™ Cab and Original Hydra-Cushion Suspension: 2750, 2755, 2950, 2955, 3030, 3040, 3130, 3140, 3150, 4000, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4560, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960
