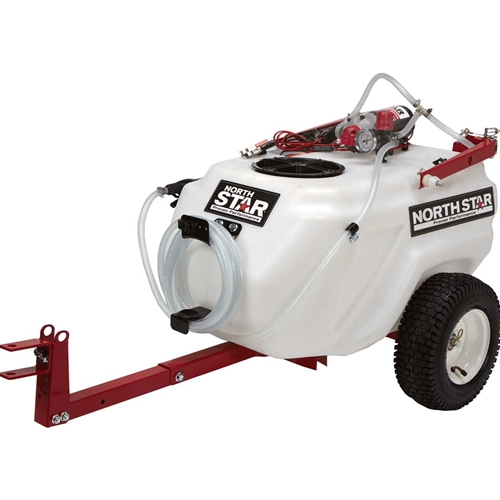

NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer - 21 Gal, 2.2 GPM & 12V DC
$330.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
The versatile, high-end NorthStar® Tow-Behind Trailer Boom Broadcast and Spot Sprayer gives you the ability to do both precision and wide-coverage spraying. Equipped with a commercial-grade NorthStar NSQ Series® pump, it provides easier priming, exceptional durability and superior resistance to harsh environments and corrosive chemicals. The completely redesigned, over-sized tank is secured to a heavy-duty 100% steel cart that handles the roughest terrain. A retractable tow bar, foldable boom arms and removable axle and wheels allow for ultra-compact storage. Gallon marks are molded into the tank for easy fluid-level monitoring. Tow behind your ATV or lawn/garden tractor.
Special Notes
Please Note: Item is factory shipped. A drop ship fee will apply in addition to the shipping cost. Please allow extra time for delivery.
Available Options
8 Total Upsell Products
Specifications
Features:
- 12-volt, 2.2 GPM open-flow NorthStar® NSQ Series™ on-demand pump provides faster priming and longer life with 70 PSI maximum
- 48 x 42 x 25 in (L x W x H)
- Weighs 60 lbs
- Holds up to 21 gallons
- 19 ft spray height
- Cone/stream spray pattern
- 180 in hose length
- 6.6 ft broadcast width
- 100% continuous-duty rating
- Santoprene™ diaphragm and Viton® valves for superior reliability and chemical resistance
- Large-capacity proprietary tank design features extra-thick walls that are UV-resistant and compatible with virtually all pesticides
- Boom delivers 120 in overall spray width, 80 in effective spray width
- Spring-loaded, breakaway boom arms fold away for compact storage
- Left and right boom nozzle control valves
- Control system pressure and fluid agitation with regulator and pressure gauge
- Compatible with Roundup® agricultural brand herbicides
- Spot spray gun nozzle adjusts from cone to stream; shoots 19ft. vertically and 30ft. horizontally
- 15 ft clear PVC hose makes monitoring chemical flow simple
- Rugged powder-coated steel cart with large 12 in pneumatic wheels
- 7.5 in diameter tank lid for easy fills
- Easy empty tank with bottom drain
- Includes pressure gauge and remote switch with battery clamps
- Includes (1) boom broadcast and spot sprayer with tow-behind trailer cart
Applications
Ideal for Attaching to ATV Utility Vehicle or Lawn Mower/Garden Tractor
