John Deere 30-55 Hydraulic KM 402 Seat & Air Suspension with Sound-Gard™ Cab & Original Hydra-Cushion Suspension
$1,399.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support

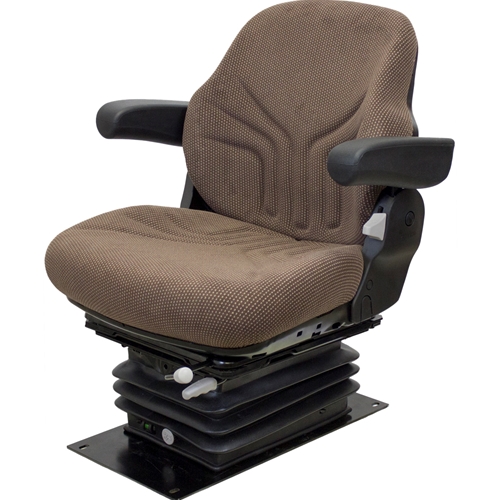

Complete seat and air suspension kit for John Deere® 30-55 Hydraulic Series tractors with Sound-Gard™ cab and original hydra-cushion suspension.
The Uni Pro™ - KM 402 Seat & Suspension is ideal in applications where a superior ride is needed. It is designed to replace the original seat and hydraulic suspension in the John Deere® 30-55 Hydraulic Series. Replacement includes the Uni Pro™ - KM 731 Seat Assembly and the KM MSG93 Air Suspension.
Videos:
The Uni Pro™ - KM 402 Seat & Suspension is ideal in applications where a superior ride is needed. It is designed to replace the original seat and hydraulic suspension in the John Deere® 30-55 Hydraulic Series. Replacement includes the Uni Pro™ - KM 731 Seat Assembly and the KM MSG93 Air Suspension.
Videos:
Special Notes
Please Note: Use this kit ONLY if your John Deere® 30-55 Hydraulic Series tractor has a Sound-Gard™ cab with an original hydra-cushion suspension.
*When using PN: 7993 with the MSG93 Air Suspension, you must reuse the original mounting hardware, hoses and wires.
*When using PN: 7993 with the MSG93 Air Suspension, you must reuse the original mounting hardware, hoses and wires.
Available Options
3 Total Upsell Products
Specifications
Uni Pro™ - KM 731 Seat Assembly Features:
- Durable brown fabric covering
- Reclining backrest with tapered back support
- Fold-up armrests
KM MSG93 Air Suspension Features:
- Grammer MSG93 Air Suspension
- Frame width of 8.92"
- Narrow, compact air suspension
- Self-contained 12-Volt compressor
- Manual weight adjustment with push-pull switch control
- Front controls
Includes a durable suspension cover to keep components free of dirt and dust.
Seat & Suspension Kit (PN: 6795) Includes:
- Grammer 731 Seat Top
- KM MSG93 Air Suspension
- Seat Adapter Plate
- Pedestal
- Slide Rails
- Install Hardware
- Installation Instructions
Available Options:
- Backrest Extension in Brown Fabric with Install Kit (PN: 8769)
- Swivel Kit (PN: 5007)
- Retractable Seat Belt Kit (PN: 7996)
- Operator Presence Switch Kit (PN: 7961)
Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):
- Replacement Fold-Up Armrests: Left-Hand (PN: 8538) or Right-Hand (PN: 8539)
- Replacement Fold-Up & Adjustable Armrests: Left-Hand (PN: 7966) or Right-Hand (PN: 7967)
- Replacement Seat Cushion in Brown Fabric (PN: 8371)
- Replacement Backrest Cushion in Brown Fabric (PN: 8245)
- Replacement LH or RH Backrest Adjustment Handle Kit (PN: 8448)
- Replacement Seat Belt Cover Kit (PN: 8372)
- Replacement Airbag Kit (PN: 8554)
- Replacement Air Switch Kit (PN: 8559)
- *Replacement 12-Volt Air Compressor Kit (PN: 7993)
Applications
John Deere® 30-55 Hydraulic Series with Sound-Gard™ Cab and Original Hydra-Cushion Suspension: 2750, 2755, 2950, 2955, 3030, 3040, 3130, 3140, 3150, 4000, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4560, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960
