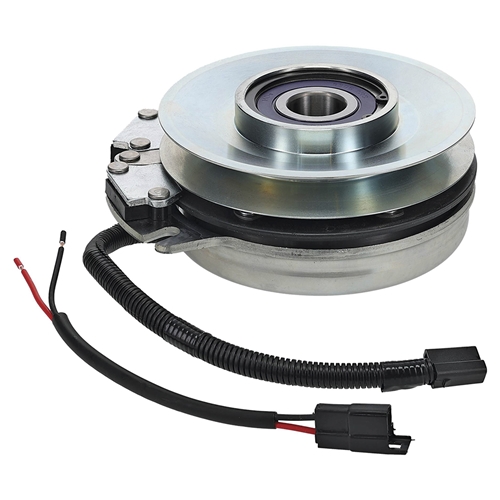

Tractorseats.com - Xtreme Clutch | Replaces OEM: Exmark 103-0665, 103-0501, 1-631732, 1-641300, 631732, 641300, E631732

SKU: GWG311323

$294.32

High Quality Product

Industry Experience

Quick Shipping

Customer Support

The Xtreme PTO clutch for Exmark Lazer Z mowers delivers better performance and higher reliability than stock clutches. This clutch features a CNC machined billet pulley for quieter and smoother performance at fast blade speeds, while increasing overall strength and stability. The replaceable FatBoy pulley bearing is a massive upgrade, adding durability to the clutch, while making repairs simple. Designed for long life, Xtreme bearings use a blend of high temperature grease and harder races to minimize wear. Stainless steel brake rivets hold the entire clutch assembly together, adding both strength and safety. Xtreme clutches also use a “Cool Coil” to run 20 percent cooler than competitors, with a composite coil that runs around 175 degrees Fahrenheit.

Specifications

Produces 205 Ft. Lb. of torque to prevent overheating for heavy duty use
Clockwise rotation only
6-5/16 In. pulley with 1-1/8 In. inside diameter, uses ½ In. or 5/8 In. belt
CNC machined billet pulley for added strength and stability at fast blade speeds
Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
Bearings use a mix of high temperature bearing grease and hardened races to improve service life
Wires are protected using a triple layered, watertight connection
Stainless steel rivets for safe operation and long-term durability
“Cool Coil” runs over 20 percent cooler than competitors, reducing heat and extending life
Works with Exmark Lazer Z EFI and Lazer Z 25 hp mowers serial no. 160,000 to 369,999
Replaces Exmark OEM no. 631732, 103-0501, 103-0665, 1-631732, E631732
Replaces Warner no. 5218-165, 5218-213, 5218-225, 5218-303, 5218-55, 5218-65, 5218-65E, 5218-95
Check the More Info tab for a full reference guide of compatible mowers and OEM part numbers
