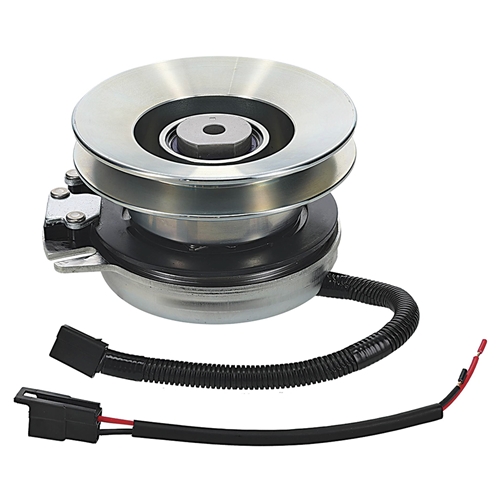

Xtreme Clutch | Replaces OEM: Ariens 00617400, 03292300
$240.65
High Quality Product
Industry Experience
Quick Shipping
Customer Support
The Xtreme PTO clutch for Ariens and Cub Cadet mowers delivers better performance and higher reliability than stock clutches. This clutch features a CNC machined billet pulley for quieter and smoother performance at fast blade speeds, while increasing overall strength and stability. The replaceable FatBoy pulley bearing is a massive upgrade, adding durability to the clutch, while making repairs simple. Designed for long life, Xtreme bearings use a blend of high temperature grease and harder races to minimize wear. Stainless steel brake rivets hold the entire clutch assembly together, adding both strength and safety. Xtreme clutches also use a “Cool Coil” to run 20 percent cooler than competitors, with a composite coil that runs around 175 degrees Fahrenheit.
Specifications
- Produces 80 Ft. Lb. of torque to prevent overheating for heavy duty use
- Counterclockwise rotation only
- 6 In. pulley with 1 In. inside diameter, uses ½ In. or 5/8 In. belt
- CNC machined billet pulley for added strength and stability at fast blade speeds
- Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
- Bearings use a mix of high temperature bearing grease and hardened races to improve service life
- Wires are protected using a triple layered, watertight connection
- Stainless steel rivets for safe operation and long-term durability
- “Cool Coil” runs over 20 percent cooler than competitors, reducing heat and extending life
- Works with Cub Cadet LT 1042, SLT 1550, and SLT 1554 mowers
- Replaces Ariens OEM no. 617400, 3292300
- Replaces Cub Cadet OEM no. 717-04163, 717-04163A, 917-04163, 917-04163A
- Replaces Warner no. 5217-32, 5217-33, 5217-43
- Check the More Info tab for a full reference guide of compatible mowers and OEM part numbers
