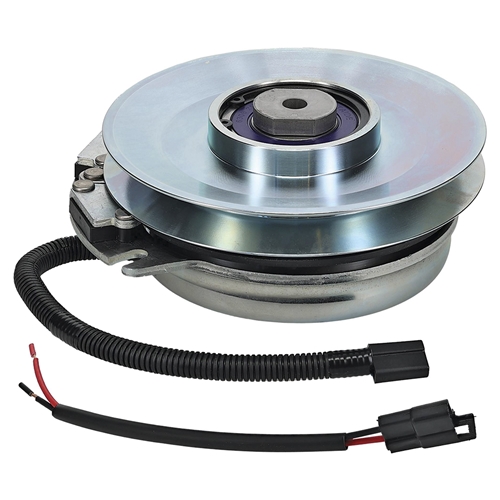

Xtreme Clutch | Replaces OEM: Toro 103-0690, 105-3630, 109-2916, 109-7036, 109-9276,
$263.65
High Quality Product
Industry Experience
Quick Shipping
Customer Support
The Xtreme PTO clutch for Toro and Lawn-Boy mowers delivers better performance and higher reliability than stock clutches. This clutch features a CNC machined billet pulley for quieter and smoother performance at fast blade speeds, while increasing overall strength and stability. The replaceable FatBoy pulley bearing is a massive upgrade, adding durability to the clutch, while making repairs simple. Designed for long life, Xtreme bearings use a blend of high temperature grease and harder races to minimize wear. Stainless steel brake rivets hold the entire clutch assembly together, adding both strength and safety. Xtreme clutches also use a “Cool Coil” to run 20 percent cooler than competitors, with a composite coil that runs around 175 degrees Fahrenheit.
Specifications
- Produces 205 Ft. Lb. of torque to prevent overheating for heavy duty use
- Counterclockwise rotation only
- 7-3/16 In. pulley with 1 In. inside diameter, uses ½ In. or 5/8 In. belt
- CNC machined billet pulley for added strength and stability at fast blade speeds
- Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
- Bearings use a mix of high temperature bearing grease and hardened races to improve service life
- Wires are protected using a triple layered, watertight connection
- Stainless steel rivets for safe operation and long-term durability
- “Cool Coil” runs over 20 percent cooler than competitors, reducing heat and extending life
- Works with Toro Z Master Z400, Z441, Z449, Z450, and Z450 mowers, serial no. 250000001 - 270999999
- Replaces Toro OEM no. 653048, 653292, 103-0690, 105-3630, 109-2916, 109-7036, 109-9276, 125-4673, 130-1849, 130-4673, 1-653048, 1-653292, E653048, E653292
- Replaces Lawn-Boy OEM no. 109-9276
- Replaces Warner no. 5218-109, 5218-150, 5218-16, 5218-205, 5218-215, 5218-251,
- 5218-296, 5218-327, 5218-335, 5218-44, 5218-49, 5218-80, 5218-80C
- Check the More Info tab for a full reference guide of compatible mowers and OEM part numbers
