Tractorseats.com - Xtreme Clutch | Replaces OEM: John Deere AM134397, AM141536, AM143390, AM146088, AUC1626

SKU: GWG311310

$232.98

High Quality Product

Industry Experience

Quick Shipping

Customer Support

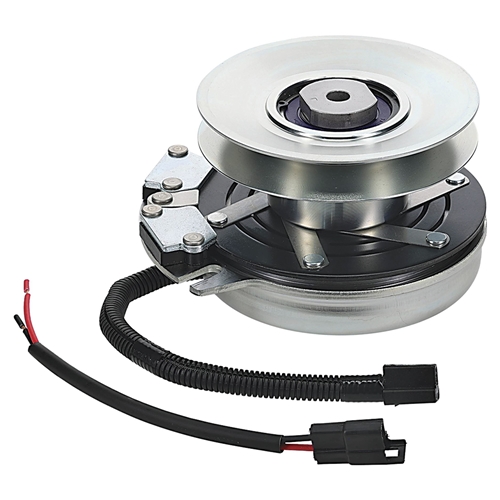

The Xtreme PTO clutch for John Deere mowers delivers better performance and higher reliability than stock clutches. This clutch features a CNC machined billet pulley for quieter and smoother performance at fast blade speeds, while increasing overall strength and stability. The replaceable FatBoy pulley bearing is a massive upgrade, adding durability to the clutch, while making repairs simple. Designed for long life, Xtreme bearings use a blend of high temperature grease and harder races to minimize wear. Stainless steel brake rivets hold the entire clutch assembly together, adding both strength and safety. Xtreme clutches also use a “Cool Coil” to run 20 percent cooler than competitors, with a composite coil that runs around 175 degrees Fahrenheit.

Specifications

Produces 125 Ft. Lb. of torque to prevent overheating for heavy duty use
Counter clockwise rotation only
5-1/2 In. pulley with 1 In. inside diameter, uses ½ In. or 5/8 In. belt
CNC machined billet pulley for added strength and stability at fast blade speeds
Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
Bearings use a mix of high temperature bearing grease and hardened races to improve service life
Wires are protected using a triple layered, watertight connection
Stainless steel rivets for safe operation and long-term durability
“Cool Coil” runs over 20 percent cooler than competitors, reducing heat and extending life
Works with John Deere EZtrack Z425 and Z445 serial no. 0 to 040000, X300 series, X300R series, X304 series, X310 series, and X320 series mowers
Replaces John Deer OEM no. AM134397, AM141536, AM143390, AM146088, AUC16267
Replaces Warner no. 5219-127, 5219-187, 5219-242, 5219-62, 5219-87
Check the More Info tab for a full reference guide of compatible mowers and OEM part numbers
