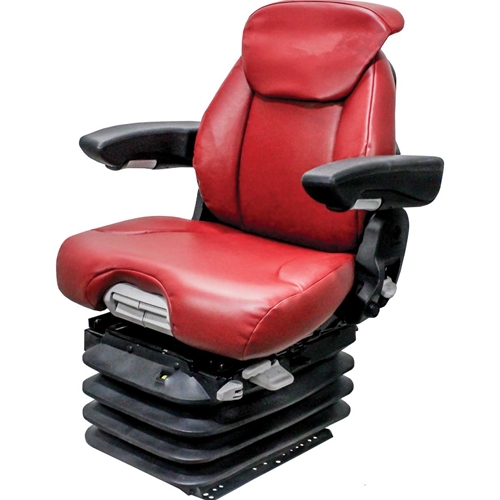

Case IH Magnum-MX-Steiger-STX Steiger KM 1310 Seat & Air Suspension
$2,099.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
Complete replacement seat and suspension for Case IH® Magnum, MX Series Magnum, Steiger and STX Steiger Series tractors.
The Uni Pro™ - KM 1310 Seat & Suspension is a seat and air suspension assembly that is specifically designed to absorb the vibrations typical of heavy tractors and tractors with axle or cabin suspension. Ideal for providing you with maximum comfort in equipment where you’ll be enduring every type of rough terrain.
Features a Dynamic Dampening Suspension System (DDS): provides a smoother ride than normal air suspension seats by responding to low frequency vibration/bumps that normal air suspensions can not. The DDS is designed with enhanced engineering using technology along with maintained air capacity in the suspension to allow for quicker response and limiting the suspension. The technology does not allow the suspension to bottom or top out producing "out of control" situation for the operator and machine. It automatically responds quicker to the vibration and bumps without the operator ever knowing what the seat is doing to keep them comfortable and in control of the machine.
Videos:
The Uni Pro™ - KM 1310 Seat & Suspension is a seat and air suspension assembly that is specifically designed to absorb the vibrations typical of heavy tractors and tractors with axle or cabin suspension. Ideal for providing you with maximum comfort in equipment where you’ll be enduring every type of rough terrain.
Features a Dynamic Dampening Suspension System (DDS): provides a smoother ride than normal air suspension seats by responding to low frequency vibration/bumps that normal air suspensions can not. The DDS is designed with enhanced engineering using technology along with maintained air capacity in the suspension to allow for quicker response and limiting the suspension. The technology does not allow the suspension to bottom or top out producing "out of control" situation for the operator and machine. It automatically responds quicker to the vibration and bumps without the operator ever knowing what the seat is doing to keep them comfortable and in control of the machine.
Videos:
Special Notes
Please Note: Replacement option for Case IH® Magnum, MX Series Magnum, Steiger and STX Steiger Series tractors.
Available Options
3 Total Upsell Products
Specifications
Features:
- Assembly is required (seat and suspension do not come attached)
- Durable Red Leatherette Vinyl covering
- Low-frequency Grammer MSG95G DDS (Dynamic Dampening Suspension) air suspension with 12-Volt compressor
- Self-contained 12-volt compressor which wires directly to the tractor's electrical system
- Plush, spacious cushions for maximum operator comfort
- 21.6" seat cushion width
- Adjustable backrest extension to extend and heighten comfort
- -10° to +34° adjustable backrest angle
- Seat depth and cushion angle adjustment
- Adjustable lumbar support to help prevent lower back pain
- Adjustable fold-up armrests
- Passive climate control
- Fore/aft isolator to absorb shock
- 8.3" fore/aft adjustment
- Height adjustment of 3.1"
- Weight adjustment
- 3.9" suspension stroke
- Comes standard with operator presence switch
- Meets ANSI requirements and ISO specifications
- Durable suspension cover to keep components free of dirt and dust
- Grammer MSG95 DDS/741 Seat
- CIH Command Center Arm Bracket
- Installation Instructions
- Swivel Kit (PN: 5007)
- Retractable Seat Belt Kit (PN: 7996)
- MSG85/95 Lateral Isolator Kit* (PN: 8400)
*The MSG85/95 Lateral Isolator Kit will only work if a Grammer 700 Series seat top is being used.
Available Maintenance Items:- Replacement LH or RH Backrest Adjustment Handle Kit (PN: 8448)
- Replacement Seat Belt Cover Kit (PN: 8372)
- Replacement Seat Depth/Tilt Kit (PN: 8594)
- Replacement Seat Depth Guide Kit (PN: 8724)
- Replacement Slide Rail Kit (PN: 6048)
- Replacement Operator Presence Switch (PN: 7961)
- Replacement 12-Volt Air Compressor Kit (PN: 7993)
- Replacement Airbag Kit (PN: 8020)
- Replacement MSG95A/AL & G Air Hose Kit (PN: 8719)
- Replacement MSG95 Fore/Aft Isolator Handle (PN: 8572)
- Replacement MSG95 Fore/Aft Isolator Kit (PN: 8210)
- Replacement MSG95 Fore/Aft Isolator Lock Kit (PN: 8513)
- Replacement Suspension Switch (PN: 8023)
- Replacement MSG95 Wear Parts Kit (PN: 8716)
- Replacement Swing Arm Kit (PN: 8131)
Applications
Case IH® Magnum, MX Series Magnum, Steiger and STX Steiger Series Tractors:
- Magnum Series: Magnum 180, Magnum 190, Magnum 210, Magnum 215, Magnum 225, Magnum 235, Magnum 245, Magnum 255, Magnum 260, Magnum 275, Magnum 290, Magnum 305, Magnum 315, Magnum 335, Magnum 340
- MX Series Magnum: MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX275, MX285, MX305
- Steiger Series: 280, 330, 335, 380, 385, 430, 435, 480, 485, 530, 535
- STX Steiger Series: STX275, STX280, STX325, STX330, STX375, STX380, STX425, STX430, STX435, STX440, STX450, STX480, STX500, STX530, STX535, STX550
