NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer - 41 Gal, 4 GPM & 12V DC
$650.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support

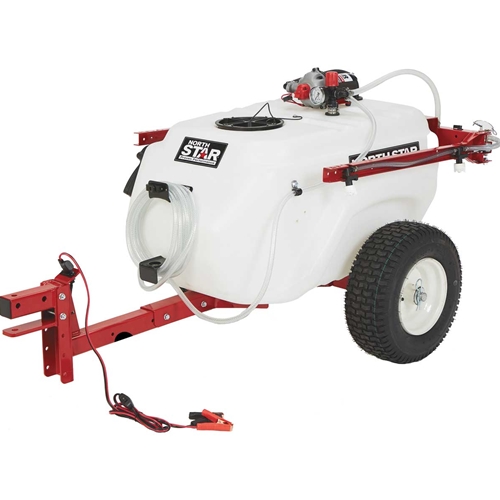

The 12V NorthStar® Tow-Behind Trailer Boom Broadcast and Spot Sprayer has a high-flow NorthStar NSQ Series® pump that lets you put down chemicals fast and easily. The boom has built-in valves that offer flow control to the left, right and center sections for precision spraying in perimeter, narrow strip or full broadcast applications. A regulator with pressure gauge allows you to finely tune spray pressure. Includes deluxe trigger spray gun, 5 nozzles, 7ft. boom and 16ft. hose.
Special Notes
Please Note: Item is factory shipped. A drop ship fee will apply in addition to the shipping cost. Please allow extra time for delivery.
Available Options
8 Total Upsell Products
Specifications
Features:
- 41-gallon capacity polymer tank with extra thick walls is chemical and UV resistant
- 60 x 38 x 34 in (L x W x H)
- Weighs 132 lbs
- Holds up to 41 gallons
- 21 ft spray height
- Cone/stream spray pattern
- 192 in hose length
- Delivers up to 4.0 GPM open flow and 60 PSI maximum for quick spraying times
- 8.3 ft broadcast pattern
- Provides the power you need to reach a vertical spray height up to 21 ft maximum, and a horizontal spray distance of up to 32 ft maximum
- NorthStar NSQ Series pump is built with a Santoprene™ diaphragm and patented DXS-3® Viton® valves for performance, chemical compatibility and durability
- Pump automatically turns off when no flow is required to conserve battery power
- Oversized electric motor is rated for 100% continuous duty to eliminate down time
- Steel boom has built-in valves with left, right or center flow control
- Built-in regulator with pressure gauge allows you to finely tune spray pressure
- Steel cart with 16 in pneumatic tires make easy work of towing over rough terrain
- Spring-loaded breakaway boom arms deflect when struck, and fold against the sides of the tank for compact storage
- Deluxe trigger spray gun has adjustable stream to cone brass nozzle and 16 ft hose
- Adjustable height tow bar hitch fits a wide range of tow vehicles (ball coupler not included)
- Large 7.5 in diameter tank lid for easy filling
- Hose wrap on the front of the sprayer and 2 spray gun storage locations keep things tidy when not in use
- Bottom mount tank drain makes rinsing the tank quick and easy
- Sump is built into the bottom of the tank for complete fluid draining
- 8 ft wire harness with battery clamps for easy battery connections/disconnections
- Bypass flow returns to tank to keep chemicals mixed well
- 12V DC power
- Includes (1) boom broadcast and spot sprayer with tow-behind trailer cart
Applications
Ideal for Attaching to ATV Utility Vehicle or Lawn Mower/Garden Tractor
