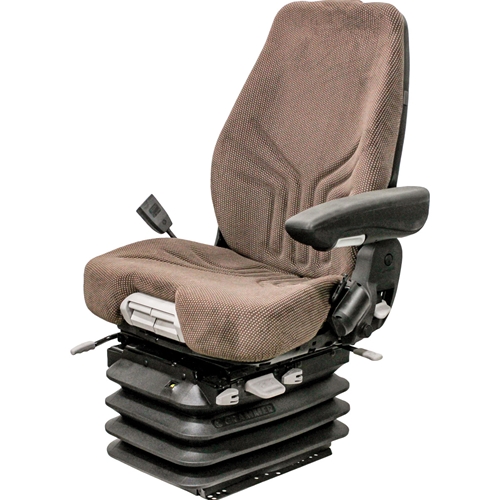

John Deere AL209102 Combine Air Seat | MSG95GL/742

SKU: 8571

$1,332.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

The Uni Pro™ - John Deere AL209102 Combine Seat & Air Suspension is a deluxe seat and air suspension assembly that replaces the original suspension seat and provides a smoother, more comfortable ride that will keep you riding in maximum comfort while enduring every type of rough terrain. The air suspension has a self-contained 12-volt compressor which wires directly to the tractor's electrical system.

This seat is a unique drop in replacement seat from Grammer Seating that is a duplicate of the OEM seat for John Deere® combines, self-propelled forage harvesters, and self-propelled and draper windrowers. This seat has all the same functionality and features of the OEM seat, like control arm console brackets. The only differences include variations in cushion color and any special knob colors.

Videos:

How To Remove Seat Depth/Tilt

Available Options

KM 731/1310 Backrest Extension Kit

SKU: 8454

$87.00

KM Grammer Backrest Extension Install...

SKU: 8573

$28.00

KM Grammer Swivel

SKU: 5007

$179.00

KM MSG85/95 Lateral Isolator Kit

SKU: 8400

$363.00

Specifications

Features:

Grammer MSG95GL/742 Seat
Durable Brown Matrix Fabric covering
Low frequency air suspension with 12-Volt compressor and 7" stroke
Plush and spacious cushions for operator comfort
Seat cushion depth/tilt adjustment
Seat cushion angle adjustment
Adjustable fold-up left-hand armrest
Right-hand command arm bracket
Retractable seat belt provides additional safety
Air adjustment switch for individual fit and comfort
Fore/aft isolator absorbs jarring for extra comfort
Adjustable slide rails provide fore/aft adjustment
Minimum of 5.9" fore/aft adjustment with variable rails stop catch
Up to 3.1" height adjustment
100 - 285 lb weight adjustment with weight indicator
Comes with operator presence switch

Includes a durable suspension cover to keep components free of dirt and dust.

Available Options:

Backrest Extension in Brown Fabric (PN: 8454)
Backrest Extension Install Kit (PN: 8573)
Swivel Kit (PN: 5007)
MSG85/95 Lateral Isolator Kit* (PN: 8400)

*The MSG85/95 Lateral Isolator Kit will only work if a Grammer 700 Series seat top is being used.

Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):

Replacement Retractable Seat Belt Kit (PN: 7996)
Replacement Fold-Up & Adjustable Armrests: Left-Hand (PN: 7966) or Right-Hand (PN: 7967)
Replacement Seat Cushion in Brown Fabric (PN: 8244)
Replacement LH or RH Backrest Adjustment Handle Kit (PN: 8448)
Replacement Seat Belt Cover Kit (PN: 8372)
Replacement Seat Depth/Tilt Kit (PN: 8594)
Replacement Seat Depth Guide Kit (PN: 8724)
Replacement Slide Rail Kit (PN: 6048)
Replacement 12-Volt Air Compressor Kit (PN: 7993)
Replacement Airbag Kit (PN: 8020)
Replacement MSG95A/AL & G Air Hose Kit (PN: 8719)
Replacement MSG95 Fore/Aft Isolator Handle (PN: 8572)
Replacement MSG95 Fore/Aft Isolator Kit (PN: 8210)
Replacement MSG95 Fore/Aft Isolator Lock Kit (PN: 8513)
Replacement MSG95 Shock Kit (PN: 8294)
Replacement Suspension Switch (PN: 8023)
Replacement MSG95 Wear Parts Kit (PN: 8716)
Replacement Swing Arm Kit (PN: 8131)
Replacement Operator Presence Switch (PN: 7961)

Applications

Multiple Applications for Agriculture Equipment. Ideal for John Deere® Combines, Forage Harvesters and Windrowers:

May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (Refer to Techincal Drawings in Documents Tab)

John Deere® S, T and W Series Combines, Forage Harvesters and Windrowers:

S Series Combines: S660, S670, S670HM, S680, S680HM, S690, S690HM
T Series Combines: T550, T560, T660, T670
W Series Combines: W540, W550, W650
Self-Propelled Forage Harvesters: 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800
Windrowers: W235 Draper, W235 Rotary, W260 Rotary

Replaces John Deere® Part Number: AL209102
